Leak Tester

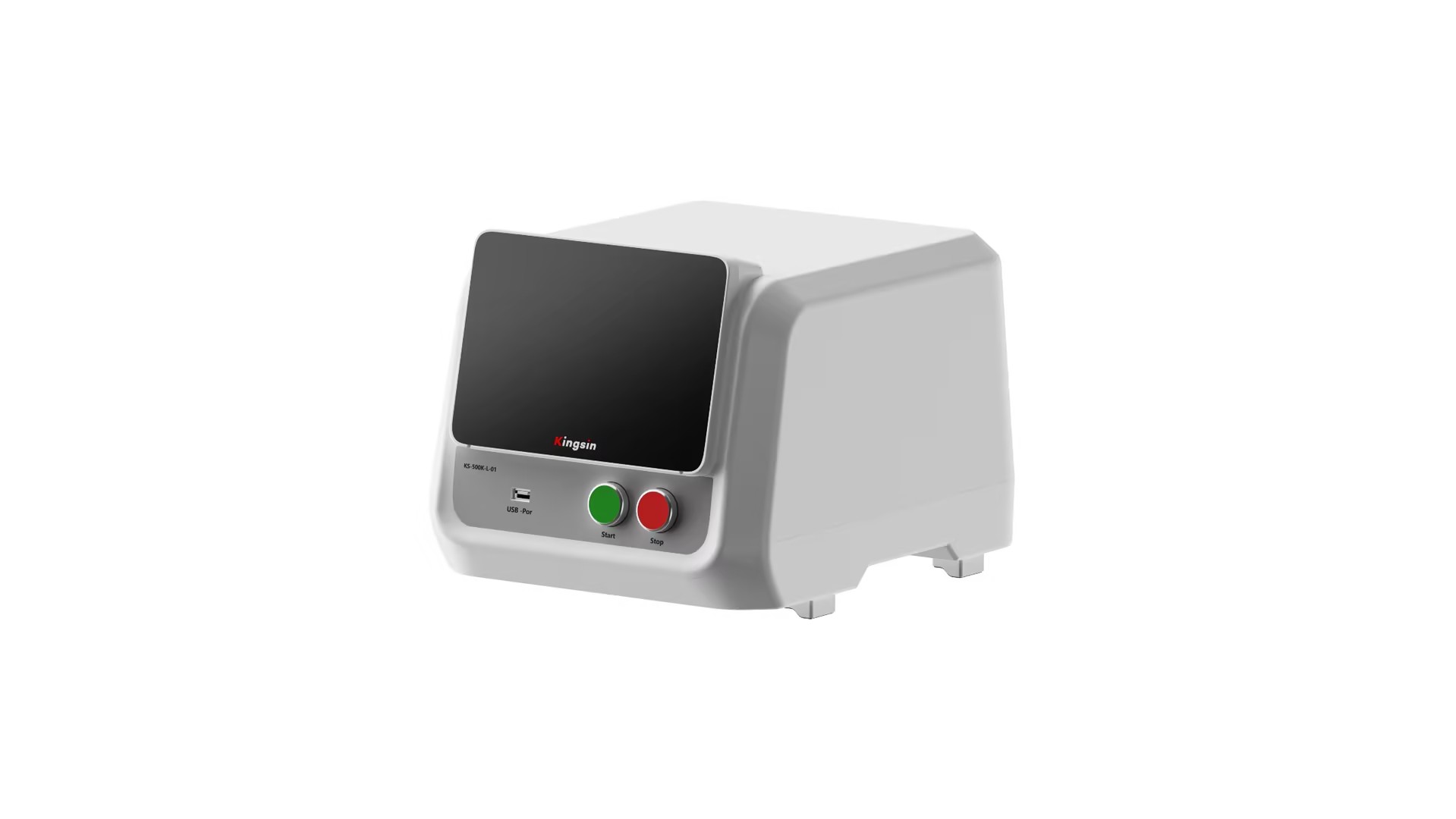

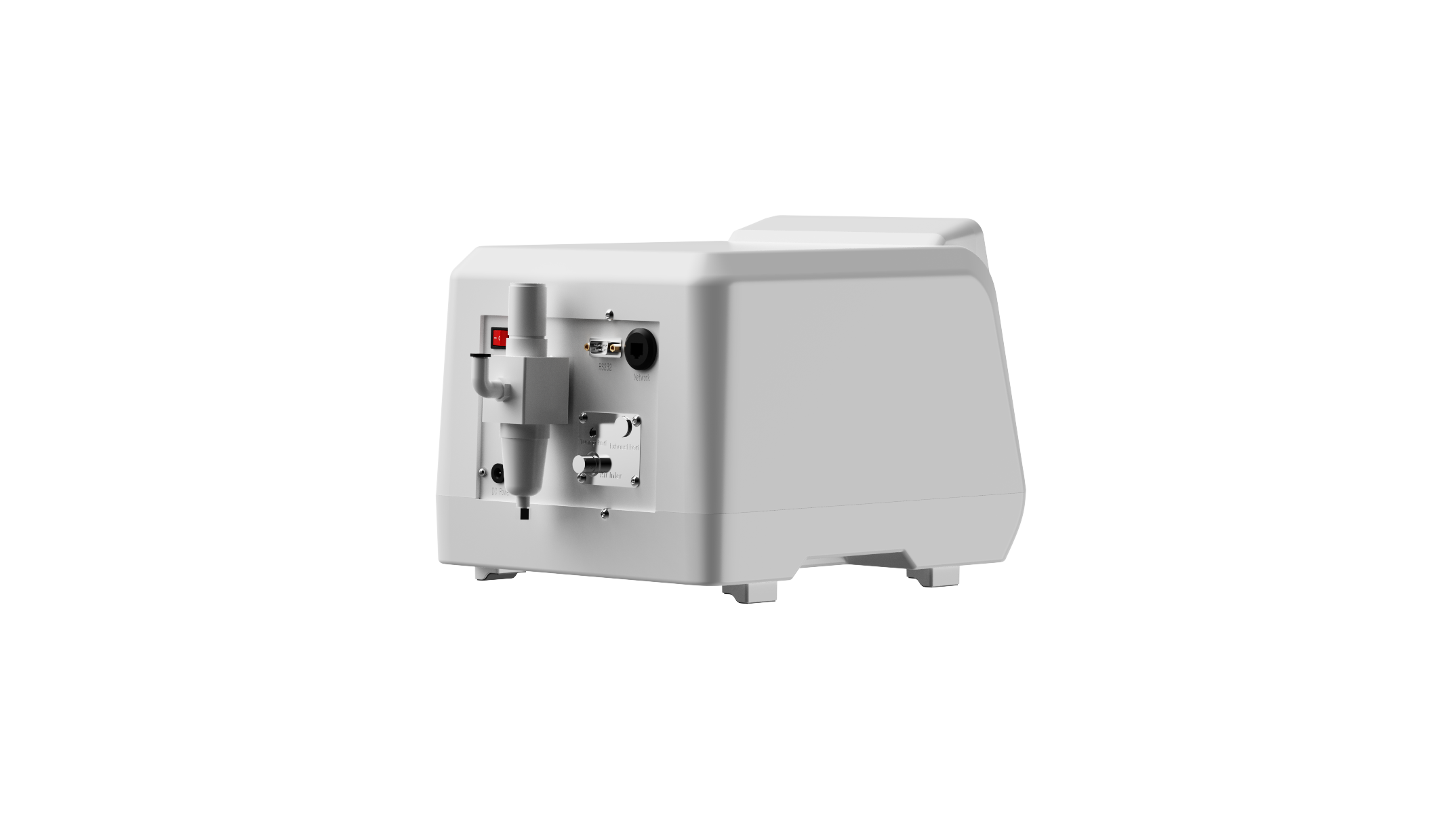

KS-500K-L-01 Air Leak Tester

Features

•High-Precision Detection: Leak resolution of 7 Pa, enabling accurate identification of minute leaks

•Stable and Reliable: Utilizes the Direct Pressure Drop (PDR) mode for excellent test repeatability

•User-Friendly Operation: 8-inch color touchscreen with a Chinese interface; one-touch start/stop

•Comprehensive Connectivity: Standard configuration includes Ethernet, RS232, USB, and external control I/O ports for easy integration

•Data Traceability: Supports storage, retrieval, and USB export of test results

•Flexible Pressure Regulation: Standard configuration includes an external pressure regulator and intake filter; optional built-in pressure regulator

Specifications

Testing Method	Direct Pressure Drop (PDR) / Differential Pressure Detection
Leak Resolution	7pa
Pressure Range	-89.6 kPa to +499.9 kPa (customizable)
Differential Pressure Range	±2 kPa (customizable)
User Interface	8-inch color LCD touchscreen
Number of Programs	120 parameter programs
Pressure Regulation Configuration	External pressure regulator + intake filter; Customizable built-in pressure regulation
Display Units	kPa, Pa, bar, psi, mbar, sccm, ml/min, etc.
Data Interfaces	Ethernet, RS232 (Modbus-RTU), USB
External Control Interfaces	Supports external start/ Stop/ Signal output
Data Management	Test result storage, query, and one-click export to USB drive

Multi-channel testing with fully customizable fixtures and circuits MES integration for full-process digital traceability and quality control
